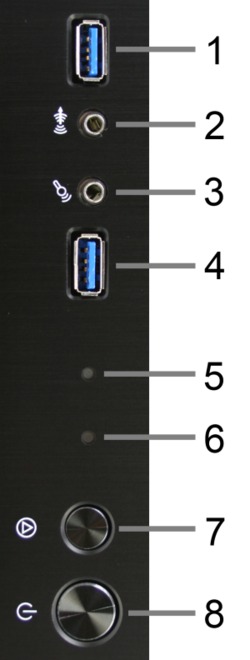

Silverstone TJ08-E Ports
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Front Headphone Jack: 3.5mm analog audio jack for output to headphones.
Front Microphone Jack: 3.5mm analog audio jack for microphone input to the computer.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
HDD LED: Light that turns on when there is drive activity.
Power LED: Light that is on while the system is powered on. May flash when the system is in standby / sleep.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
Power Switch: On/off button for the device.
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

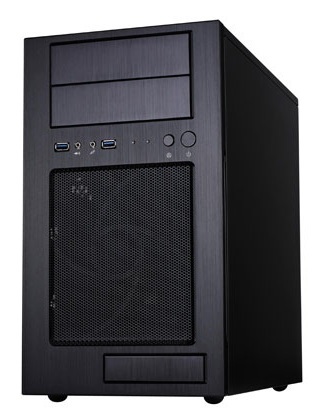

Model: Silverstone SST-TJ08-E(black)
Specifications
| Color | Black |
| Material | Aluminum front panel, steel frame |
| Type/Size | Micro Tower |
| Maximum Motherboard Size | MicroATX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 374 mm (14.7 in) |
| Width | 210 mm (8.3 in) |
| Depth | 385 mm (15.2 in) |
| Net Weight | 5.3 kg (11.7 lbs) |
| Maximum CPU Cooler Height | 165mm |
| Maximum GPU Length | 336.55mm |
| Maximum PSU Length | 160mm recommended (180mm maximum) |
Drive Bays | |
| External 5.25 inch | 2 |
| External 3.5 inch | 1 |
| Internal 3.5 inch | 4 |
| Internal 2.5 inch | 1 |
Front Panel Connectors | |
| USB 2.0 | 0 |
| USB 3.0 | 2 |
| Firewire | 0 |
| Audio In | 1 |
| Audio Out | 1 |
| eSATA | 0 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | Front 180mm (with low/high switch) |
| Total Fan Mounts | Rear 120mm |
