Note: Compatible only with Antec 1200, P183, and P193 chassis. Compatible only with Antec 1200, P183, P193, and DF-85 chassis.

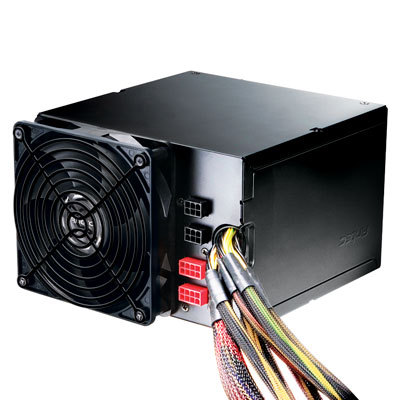

Model: Antec CP-1000
Specifications
| Maximum Power | 1000 W |
| Peak Efficiency | 80 % |
| Efficiency Certification | 80 PLUS |
| Cooling System | Quiet 120mm Fan |
| Safety Compliance | UL, FCC, TÜV, CE, C-tick, CCC, CB |
| Industry Compliance | OVP (Over Voltage Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection) |
Power Distribution | |
| +3.3V rail | 28.0 amps |
| +5V rail | 30.0 amps |
| +12V1 rail | 25.0 amps |
| +12V2 rail | 30.0 amps |
| +12V3 rail | 30.0 amps |
| +12V4 rail | 30.0 amps |
| Combined +12V Maximum | 115 amps |
Connectors | |
| Molex | 6 |
| SATA | 12 |
| Floppy | 1 |
| PCIe 6-Pin | 2 |
| PCIe 8-Pin | 2 |
| CPU Power 8 pin | 1 |
| CPU Power 8/4 pin | 1 |
Dimensions | |
| Height | 119.4 mm (4.7 in) |
| Width | 175.3 mm (6.9 in) |
| Depth | 200.7 mm (7.9 in) |
| Net Weight | 3.2 kg (7.1 lbs) |
Input | |
| Voltage | 100~240 Vac |
| Frequency | 47~63 Hz |
