Asus X99 Deluxe II Ports

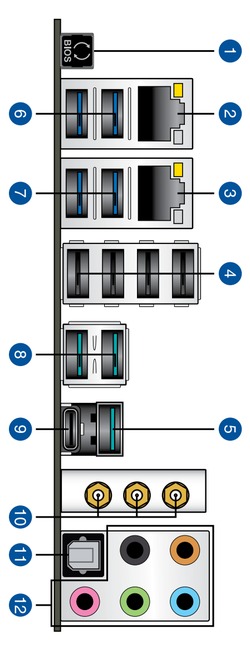

USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

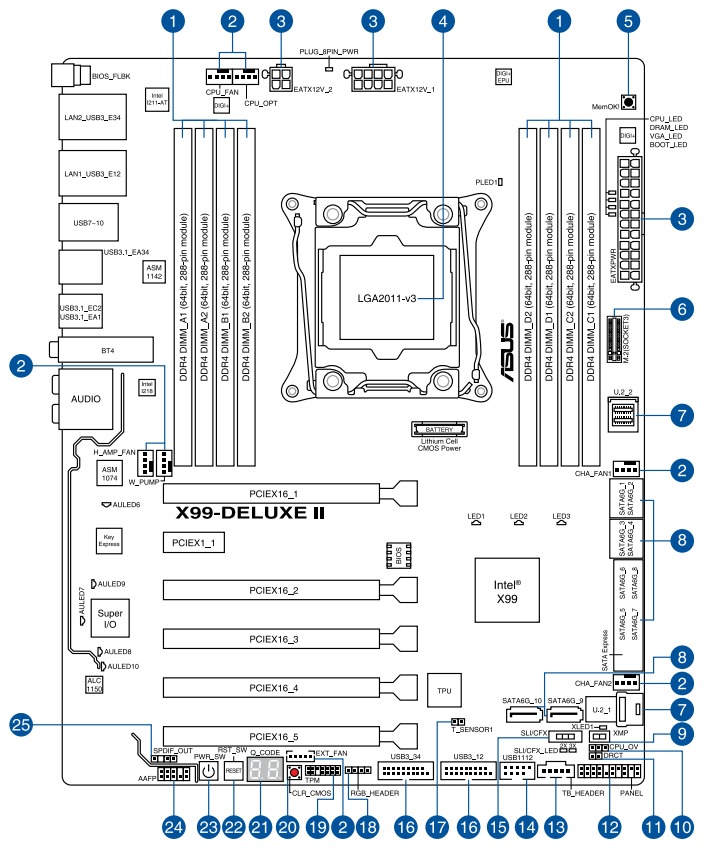

Asus X99 Deluxe II Schematic
We are NOT offering the Thunderbolt add-on card with this motherboard, because it fails to meet our quality standards. This board, aside from that, is an excellent board and one we fully recommend.

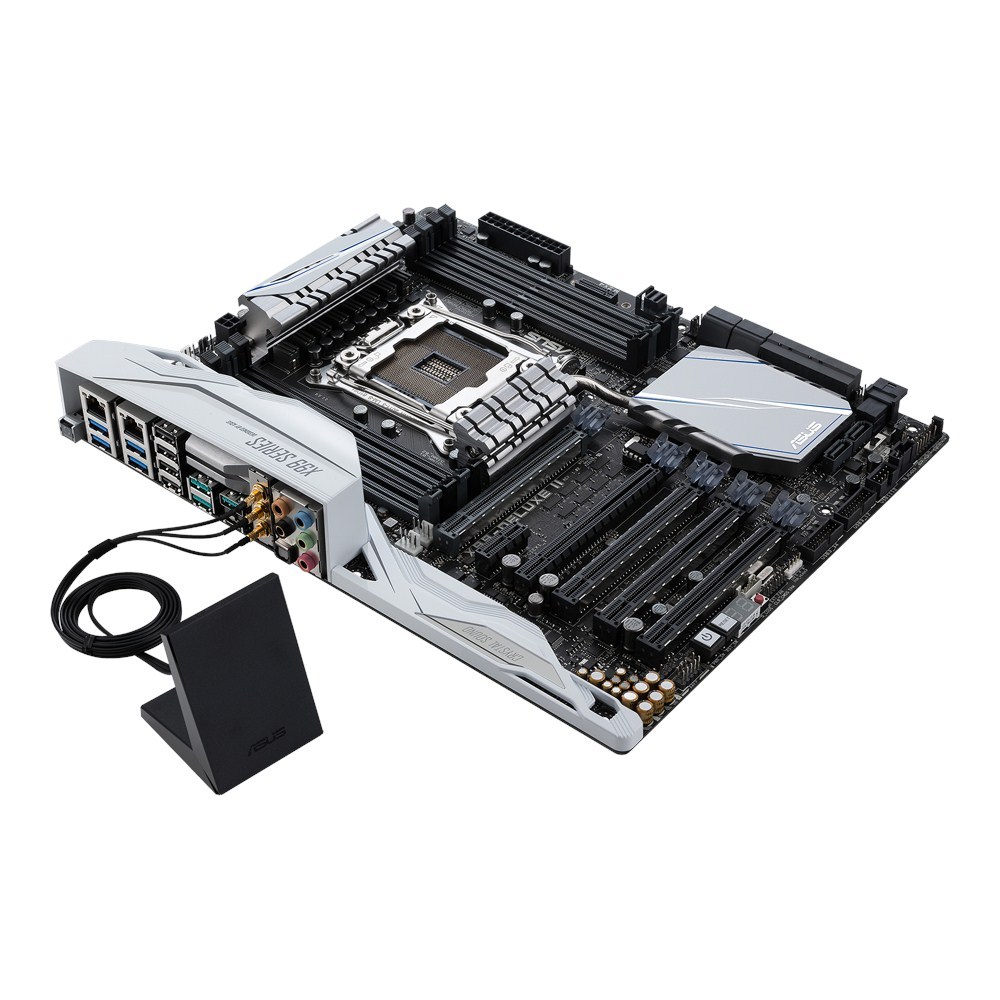

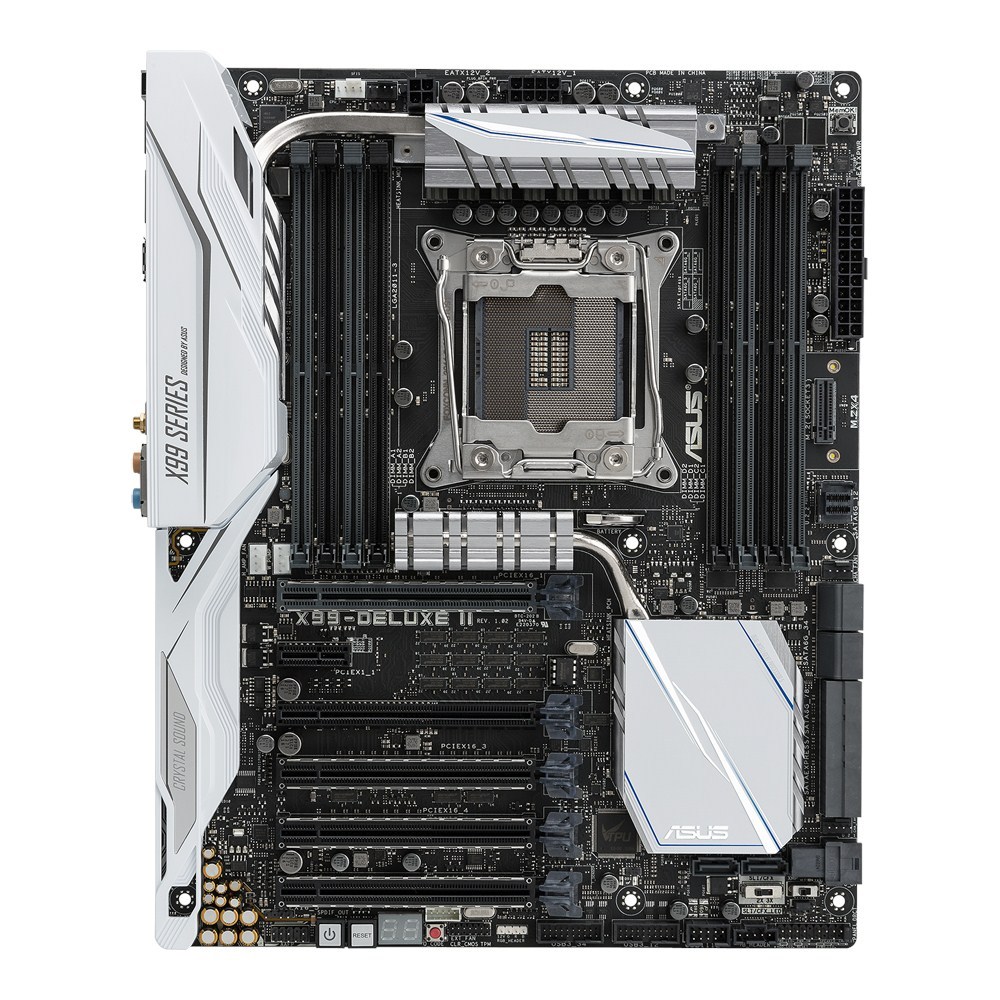

This board sports Asus' white-on-black color scheme, and it looks great in systems with a side window. It is also loaded with all the latest technology, so if you are looking for something that is future-proof this is a great choice.
Model: Asus X99-DELUXE II
Specifications
| Socket | 2011-3 |
| CPU Compatibility | Intel Core i7 Processors on LGA 2011-v3 Socket |
| Form Factor | ATX |
| Chipset Manufacturer | Intel |
| Chipset | X99 |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking + 802.11 A/B/G/N/AC |
| Network Controller | Intel I218-V, Intel I211-AT |
| Audio Controller | Realtek ALC1150 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black & White |
Memory Support | |
| Type | DDR4 ECC Registered |
| Maximum Speed | 2133 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 512 GB |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 3 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| SATA III 6.0Gbps | 8 |
| SATA Express | 1 |
| M.2 Connector | 1 |
| M.2 Support | M.2 x4 Socket 3 with vertical M Key design, type 2242/2260/2280 |
| U.2 Connector | 2 |
| TPM (module sold separately) | 1 |
| Compatible TPM | 14-1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 8 port - Intel X99 |
| SATA III 6.0Gbps Controller 2 | 1 SATA Express port - Intel X99 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | PCI Express 2.0 x1 |
| Slot 3 | PCI Express 2.0 x4 in a x16 size |
| Slot 4 | PCI Express 3.0 x16 |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 (Only on ports 1-4) |
| Bluetooth | Yes (4.0) |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 244 mm (9.6 in) |
Expansion slots:
40-Lane CPU:
4x PCe 3.0/2.0 x16 slots* (single@x16, dual@x16/x16, triple@x16/x16/x8, quad@x8/x8/x8/x8 mode)
1x PCIe 2.0 x16 slot** (PCIEx16_2 max. at x4 mode, compatible with PCIe x1 and x4 devices)
1x PCIe 2.0 x1 slot (compatible with PCIe x1)
28-Lane CPU:
3x PCe 3.0/2.0 x16 slots*** (single@x16, dual@x16/x8, triple@x8/x8/x8)
1x PCIe 2.0 x16 slot** (PCIEx16_2 max. at x4 mode, compatible with PCIe x1 and x4 devices)
1x PCIe 2.0 x16 slot** (PCIEx16_5 max. at x1 mode, compatible with PCIe x1 devices)
1x PCIe 2.0 x1 slot (compatible with PCIe x1 devices)
*PCIe x16_3 shares bandwidth with M.2 and U.2_2. It runs at x16 mode by default. PCIe x16_5 shares bandwidth with U.2_1. It runs at x4 mode by default with U.2_1 enabled.
**PCIe x16_2 shares bandwidth with USB3_34 and USB 3.1_EA34. It runs at x2 mode by default.
***PCIe x16_3 shares bandwidth with M.2 and U.2_2. It runs at x8 mode by default. PCIe x16_4 shares bandwidth with U.2_1. It is disabled by default.
Due to chipset behavior, The SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.
