Cooler Master NR200P V2 Ports
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Power Switch: On/off button for the device.
Combo 3.5mm Audio Jack: Audio Jack that supports 3.5mm headphones/microphones.

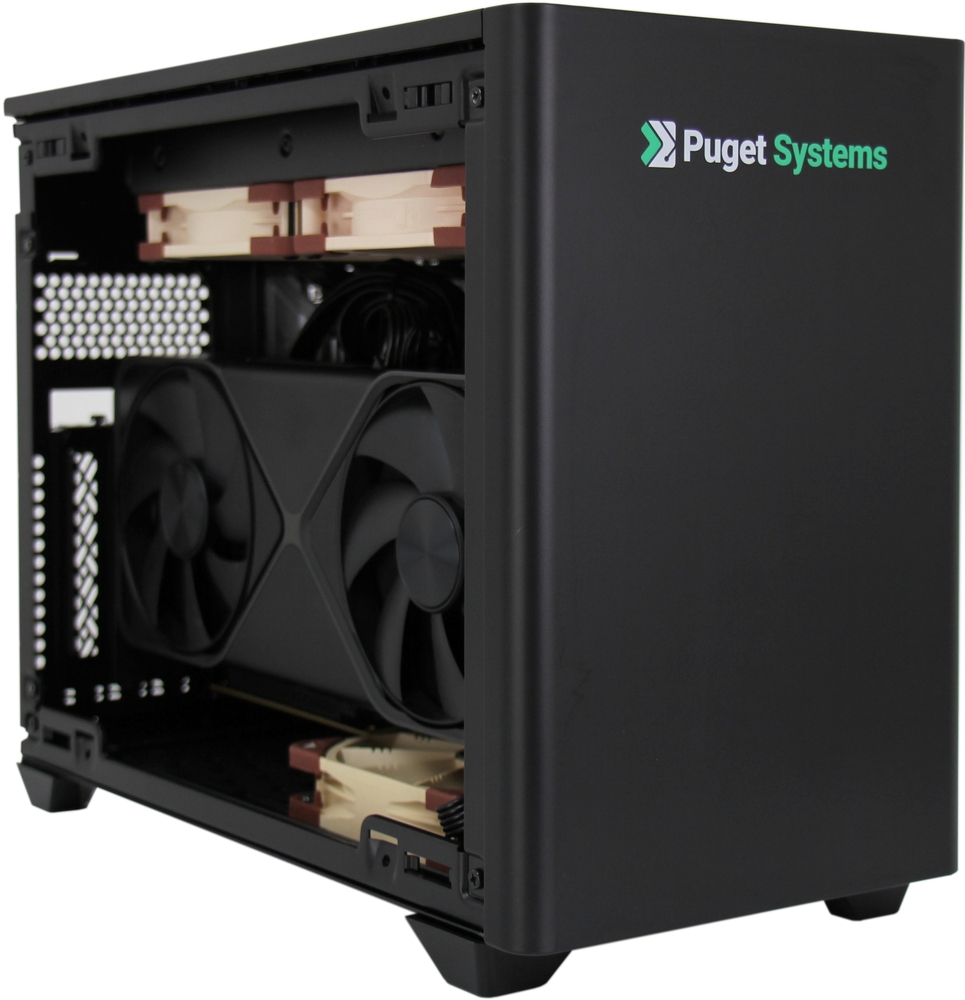

Cooler Master's NR200P V2 is a small-form-factor chassis that still has room for surprisingly high-performance components. While not as compact as some other cases, it is optimized to make the most of its size - fitting a mini ITX motherboard, three-slot video card, and an AIO liquid cooler with up to 280mm radiator. Plenty of ventilation is provided - with dust filters on the top, bottom, and both sides - and four fan mounts are available to help keep all of the components cool.

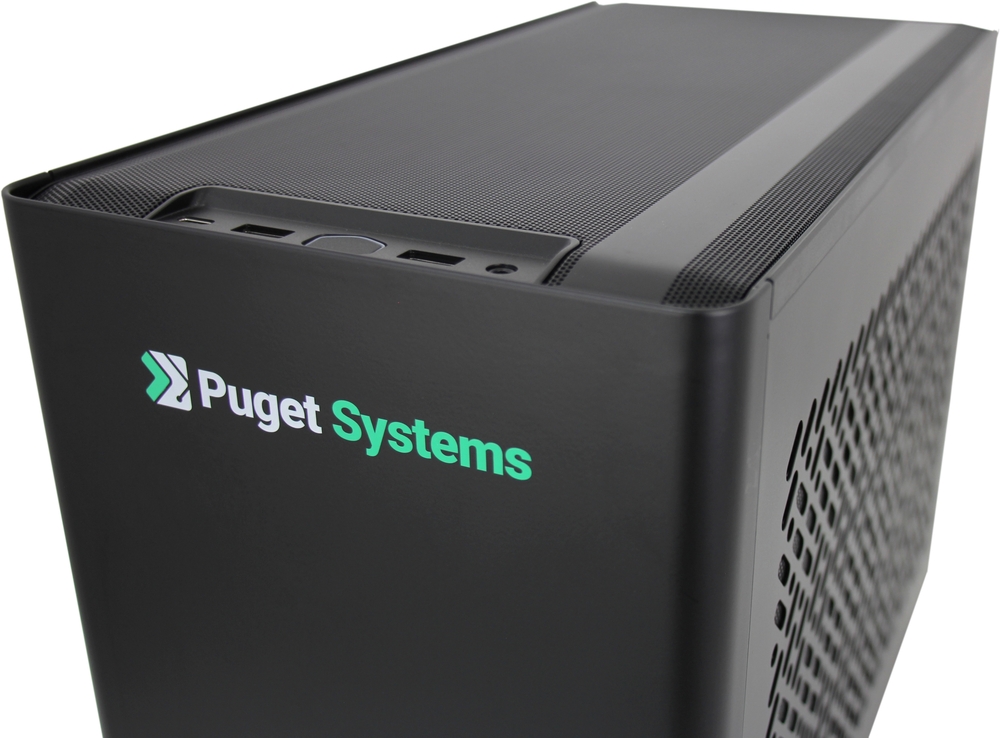

Front I/O connections and the power button are located along the top of the front bezel, and include one USB Type C, two USB Type A, and a 3.5mm headset jack. The chassis can mount an SFX or SFX-L power supply, and one 2.5" drive bay is available internally for storage (along with any M.2 slots on the motherboard).
Front I/O connections and the power button are located along the top of the front bezel, and include one USB Type C, two USB Type A, and a 3.5mm headset jack. The chassis can mount an SFX or SFX-L power supply, and one 2.5" drive bay is available internally for storage (along with any M.2 slots on the motherboard).
Model: Cooler Master MasterBox NR200P V2: NR200PV2-KCNN-S00
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | ITX |
| Case Window | Yes |

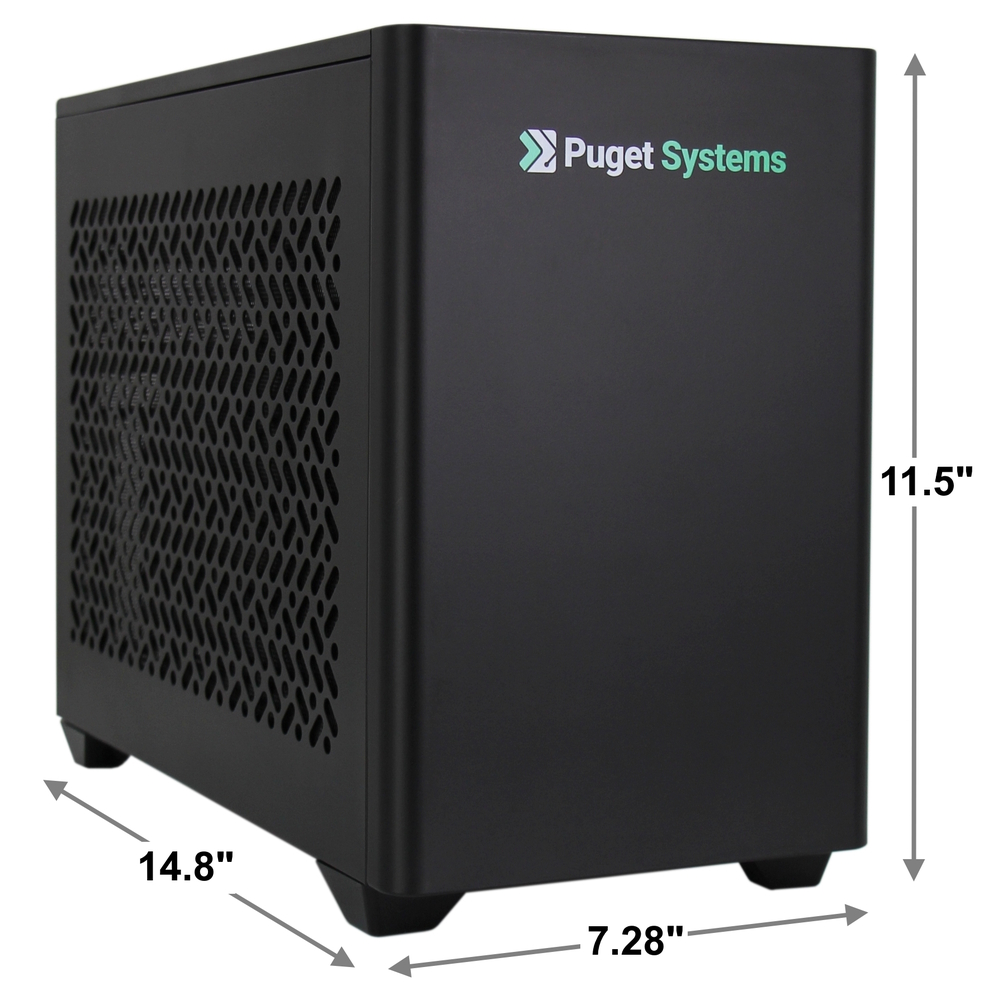

Dimensions | |
| Height | 292 mm (11.5 in) |
| Width | 185 mm (7.3 in) |
| Depth | 372 mm (14.6 in) |
| Net Weight | 4.425 kg (9.8 lbs) |
| Maximum CPU Cooler Height | 67mm |
| Maximum GPU Length | 334mm |
| Maximum PSU Length | 130 |
Drive Bays | |
| Internal 3.5 inch | 1 |
| Internal 2.5 inch | 1 |
Front Panel Connectors | |
| USB 3.0 | 2 |
| Audio Out | 1 |
| USB-C | 1 |
Cooling System | |
| Included Fans | 1x 120mm |
| Total Fan Mounts | 2x top 120mm, 2x bottom 120mm |
