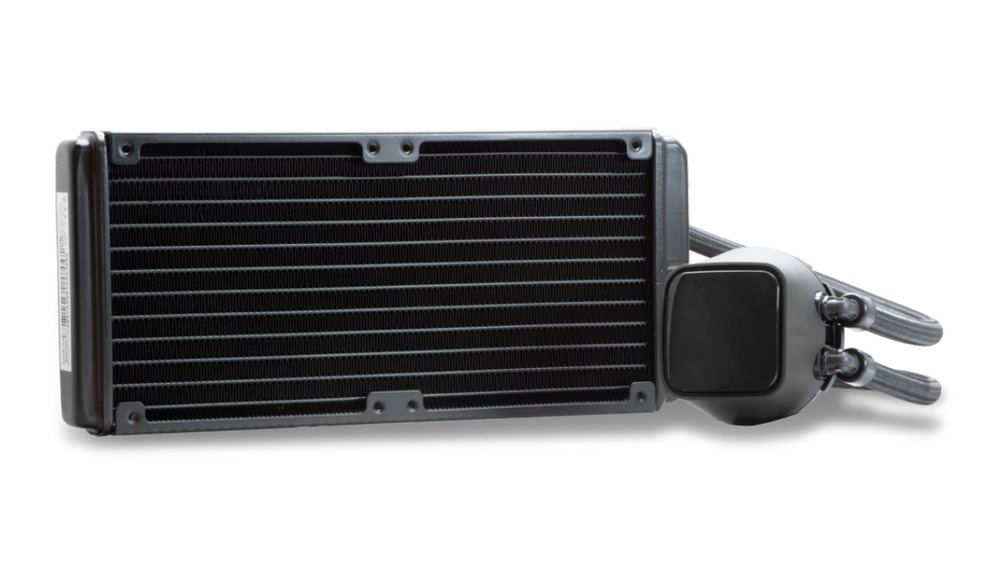

The Asetek 624S-M2 is an all-in-one liquid cooling system designed for mainstream processors like the Intel Core Ultra and AMD Ryzen product lines. It features a copper cold plate and large 240mm radiator with mounting for two 120mm fans. A pump is integrated directly above the water block, but its compact profile ensures there is no interference with RAM module access or PCI-Express slots.
Model: Asetek 624S-M2
Specifications
Dimensions | |
| Length | 240 mm (9.4 in) |
| Width | 120 mm (4.7 in) |
| Height | 27 mm (1.1 in) |
| Net Weight | 0.79 kg (1.7 lbs) |
Fan Specifications | |
| Air Flow | 55 CFM |
| Bearing | SSO2 |
| Fan Size | 120mm mm (4.7 in) |
| Fan Speed | 1500 RPM |
| Life Time MTTF | >150000 hours |
| Noise Level | 22.4 dBa |
| Static Pressure | 2.61 mmAq |
General | |
| Compatibility | AMD Ryzen, Intel Core |
