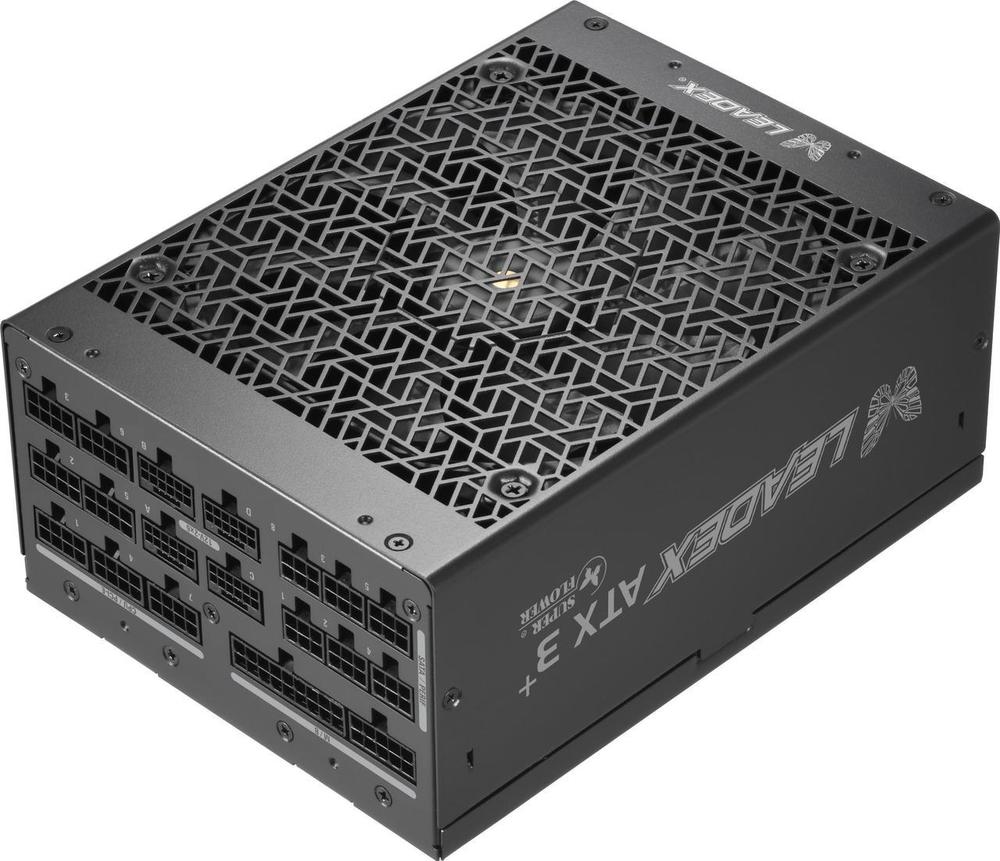

This Super Flower LEADEX Platinum 2800W is a huge, 200-240V power supply built for computers that need more wattage than a standard 120V circuit can provide. It requires a specialized outlet and comes with a heavy-gauge cable to handle the high power load.
In terms of efficiency, this PSU bears the Cybenetics Platinum rating. It utilizes completely modular wiring for clean assembly and a 140mm cooling fan. This PSU also supports ATX 3.1 and PCIe 5.1, with four 16-pin connectors for powering the latest graphics cards.
In terms of efficiency, this PSU bears the Cybenetics Platinum rating. It utilizes completely modular wiring for clean assembly and a 140mm cooling fan. This PSU also supports ATX 3.1 and PCIe 5.1, with four 16-pin connectors for powering the latest graphics cards.
Model: Super Flower SF-2800F14HP
Specifications
| Maximum Power | 2800 W |
| Peak Efficiency | 92 % |
| Efficiency Certification | 80 PLUS Platinum |
| Cooling System | Quiet 140mm Fan |
| Form Factor | PS/2 |
Power Distribution | |
| +3.3V rail | 24 amps |
| +5V rail | 24 amps |
| +12V1 rail | 233.3 amps |
Connectors | |
| Molex | 4 |
| SATA | 12 |
| PCIe 8-Pin | 6 |
| 12V-2x6 | 4 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C19 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 220 mm (8.7 in) |
| Net Weight | 3.835 kg (8.5 lbs) |
Input | |
| Voltage | 200-240 Vac |
